Original legacy product photograph and watermark retained. Final configuration is subject to confirmation.

Conveying & auxiliary equipment / SR-62

Vacuum lung removal system

A vacuum lung-removal system for poultry after evisceration, with pneumatic control and cooling-water functions. Configure the vacuum system, operator stations and utilities together.

Technical data awaiting factory confirmation

Model: SR-XKXF8000
Throughput: 25000–30000 birds/day / 只/日（画册参考 / brochure reference）
Poultry type: 鸡、鸭、鹅 / Chicken, duck, goose
Material: 不锈钢；等级待确认 / Stainless; grade to confirm
Voltage: 按目的地和铭牌确认 / Confirm for destination & nameplate
Power: 11 kW（画册 / brochure）

Request a quote for this machine ↗

Technical specifications

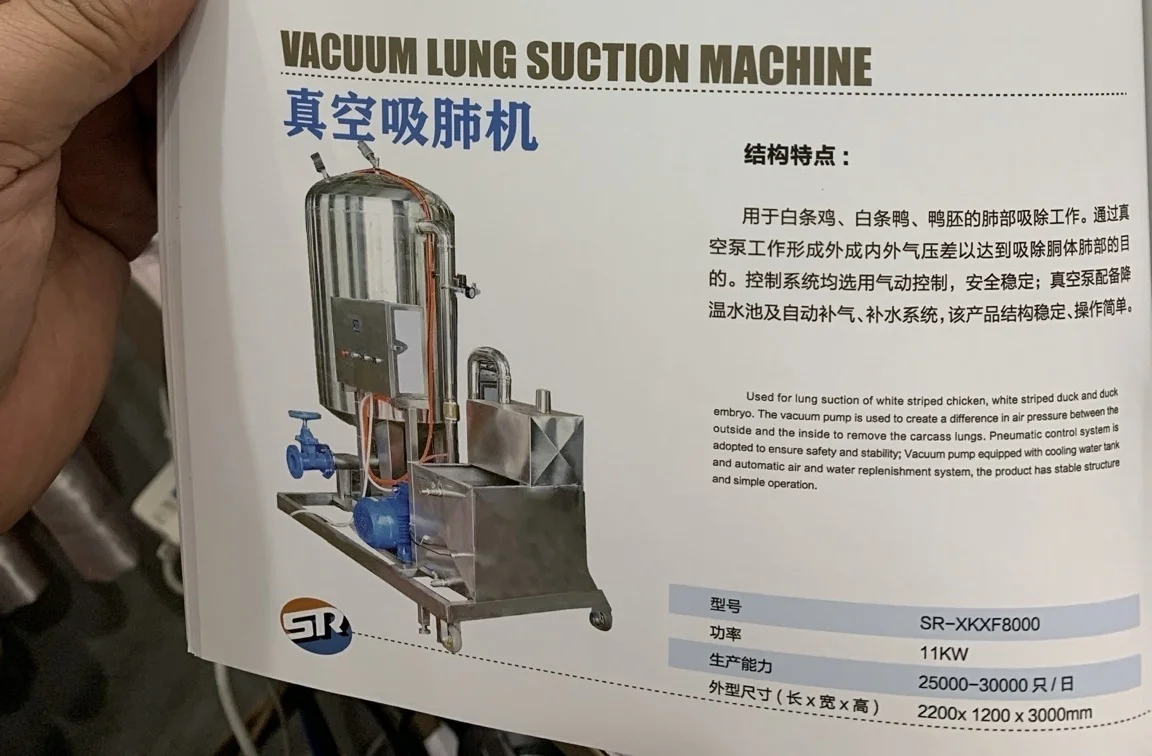

Source: manufacturer 35-page product brochure, PDF page 18. Reference model: SR-XKXF8000 Brochure nominal output: 25000–30000 birds/day / 只/日 Brochure power: 11 kW Dimensions (L × W × H, mm): 2200 × 1200 × 3000 Shift calculation: with 8 productive hours/day, the stated daily output averages 3,125–3,750 birds/hour. This is daily output divided by productive time, not a separately confirmed rated speed. Selection reference: final configuration, output and acceptance criteria are agreed for each project.
