Original legacy product photograph and watermark retained. Final configuration is subject to confirmation.

Conveying & auxiliary equipment / SR-59

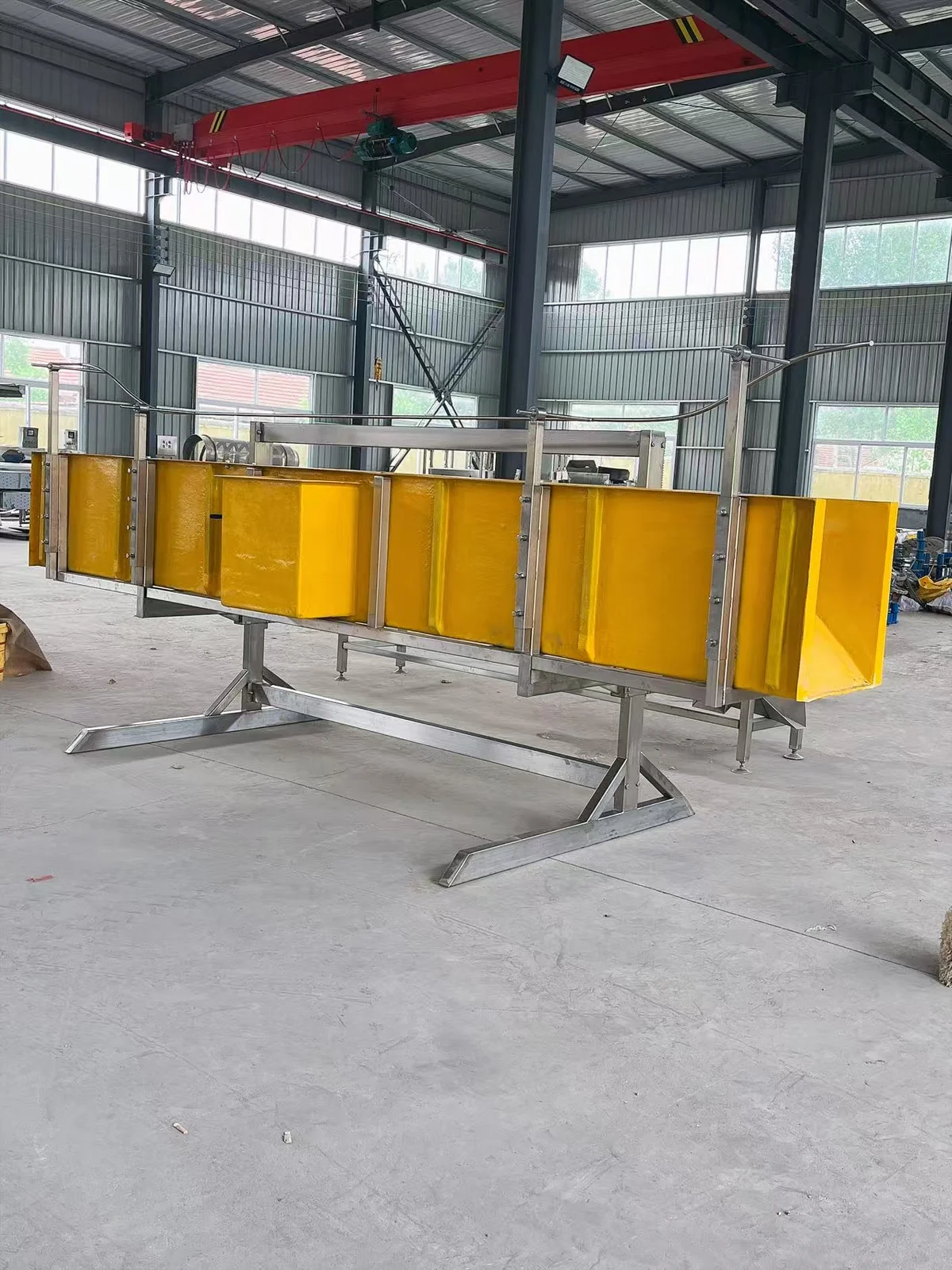

Poultry water-bath stunner

A water-bath stunner for suspended poultry before slaughter. The brochure describes an insulating nylon tank and adjustable stunning voltage. Define electrical and operating conditions for the conveyor and species.

Technical data awaiting factory confirmation

Model: SR-DY3000
Throughput: 16000 birds/h / 只/小时（画册参考 / brochure reference）
Poultry type: 鸡、鸭、鹅 / Chicken, duck, goose
Material: 尼龙绝缘池体 / Nylon insulating tank
Voltage: 220 V（供电 / supply）；频率待确认 / frequency to confirm
Power: 按铭牌确认 / Confirm on nameplate

Request a quote for this machine ↗

Technical specifications

Source: manufacturer 35-page product brochure, PDF page 16. Reference model: SR-DY3000 Brochure nominal output: 16000 birds/h Dimensions (L × W × H, mm): 6000 × 500 × 1800 The power row states 220V, which is supply voltage, not motor power or a stunning setting. Qualified personnel must establish stunning parameters for the species and local requirements. Illustrative shift estimate: at an assumed 8-hour shift and 80% productive time, approximately 102,400 birds/shift. This is a planning calculation, not measured or guaranteed output. Selection reference: final configuration, output and acceptance criteria are agreed for each project.
