Original legacy product photograph and watermark retained. Final configuration is subject to confirmation.

Conveying & auxiliary equipment / SR-58

Poultry carcass weighing system

Automatic weighing and grading route carcasses or cuts into weight bands for portion control and downstream packing. Select the configuration for product dimensions, weight range and the required number of outlets.

Technical data awaiting factory confirmation

Model: SR-TC2000
Throughput: 6000 birds/h / 只/小时（画册参考 / brochure reference）
Poultry type: 禽体、禽肉分割品 / Poultry carcasses and cuts
Material: 不锈钢；等级待确认 / Stainless; grade to confirm
Voltage: 按目的地和铭牌确认 / Confirm for destination & nameplate
Power: 3 kW（画册 / brochure）

Request a quote for this machine ↗

Technical specifications

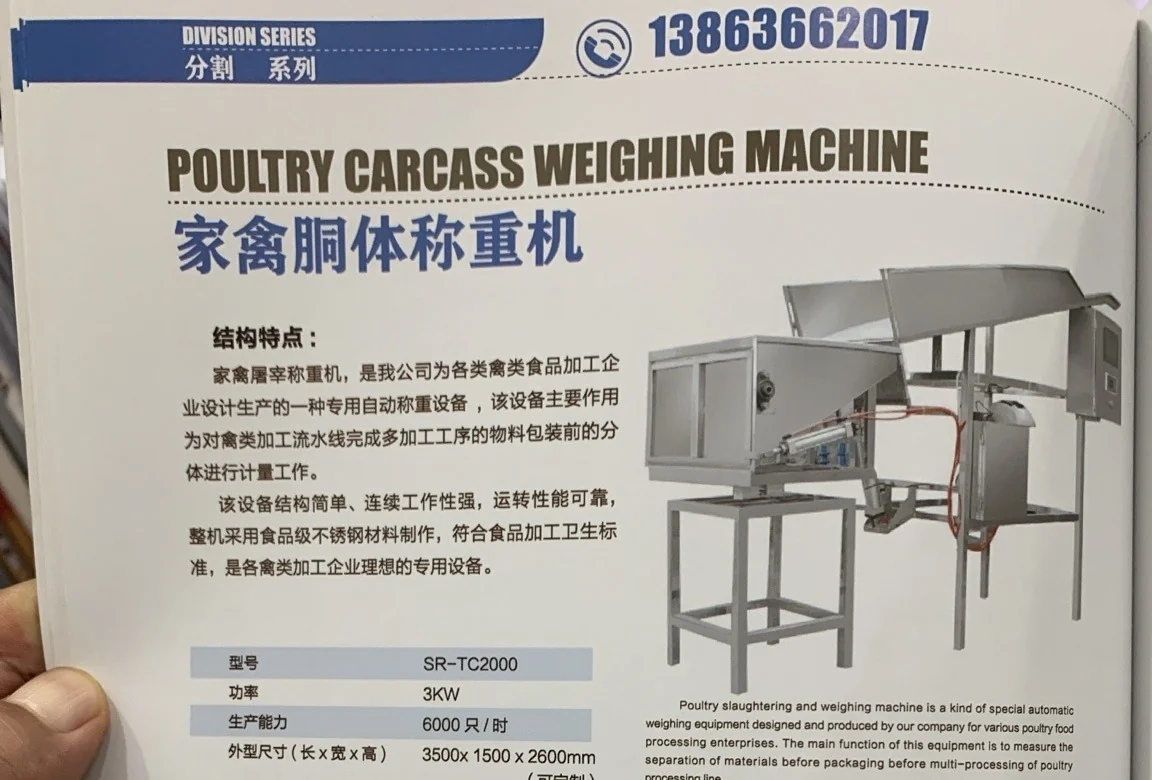

Source: manufacturer 35-page product brochure, PDF page 16. Reference model: SR-TC2000 Brochure nominal output: 6000 birds/h Brochure power: 3 kW Dimensions (L × W × H, mm): 3500 × 1500 × 2600 Weight range and dynamic weighing accuracy are not specified; verify with the intended samples. Illustrative shift estimate: at an assumed 8-hour shift and 80% productive time, approximately 38,400 birds/shift. This is a planning calculation, not measured or guaranteed output. Selection reference: final configuration, output and acceptance criteria are agreed for each project.
