Chilling equipment / SR-71

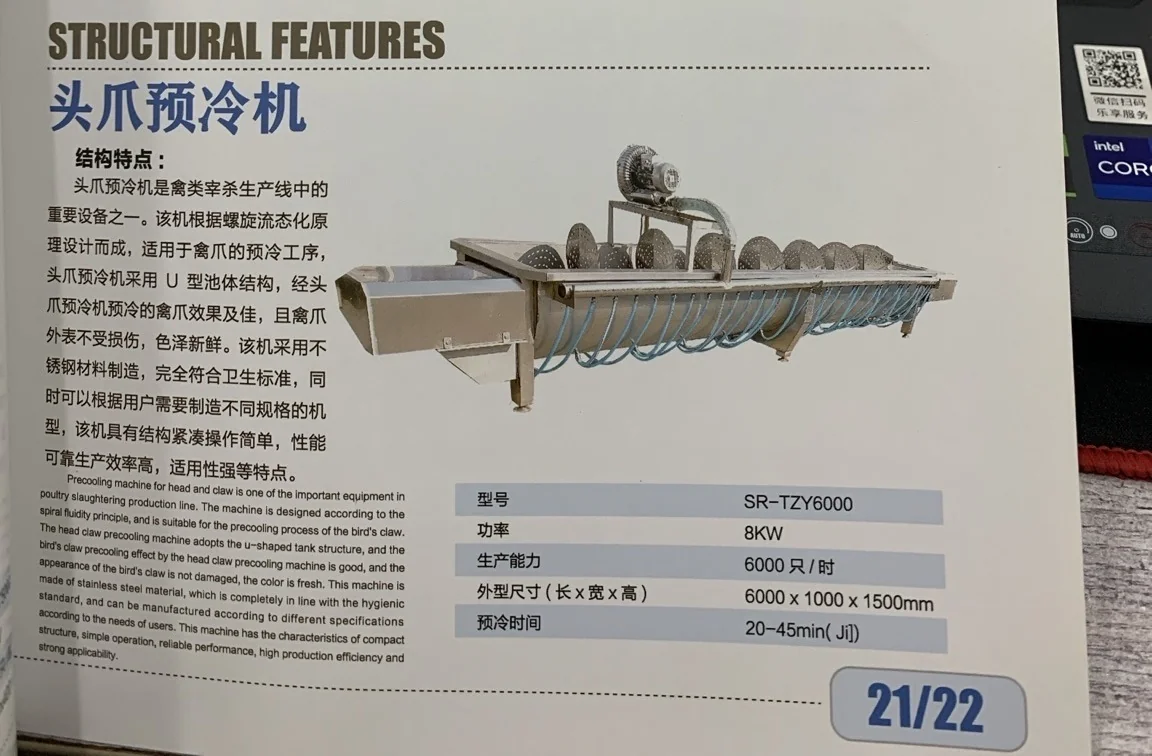

Poultry head and feet chiller
A screw conveyor and water agitation provide continuous immersion pre-chilling after evisceration. Conveying speed and dwell time can be adjusted; chilled water, replenishment and refrigeration must be sized for the complete line.
Technical data awaiting factory confirmation
- Model
- SR-TZY6000
- Throughput
- 6000 units/h / 个/小时（画册参考 / brochure reference）
- Poultry type
- 鸡、鸭、鹅 / Chicken, duck, goose
- Material
- 不锈钢；等级待确认 / Stainless; grade to confirm
- Voltage
- 按目的地和铭牌确认 / Confirm for destination & nameplate
- Power
- 8 kW（画册 / brochure）
Technical specifications
Source: manufacturer 35-page product brochure, PDF page 25. Reference model: SR-TZY6000 Brochure nominal output: 6000 units/h / 个/小时 Brochure power: 8 kW Dimensions (L × W × H, mm): 6000 × 1000 × 1500 Pre-chilling time 20–45 minutes; the stated 6,000/hour is an item-count reference for head/feet material, not whole-line slaughter capacity. Selection reference: final configuration, output and acceptance criteria are agreed for each project.
Applications
After evisceration and washing, before cut-up or packing. Validate outlet temperature and sanitation against local processing requirements.
Equipment video
Video pending. Let us know which processing operation you would like to see.
